Based on ARM+DSP architecture
■ Provide firmware network remote upgrade, which can be used offline
Standard RJ45 network interface, supporting cross network segment and cross router
■ Provide a stereo line output for external amplification use
■ Built in microphone and speaker, equipped with call button
Two methods can be used: search configuration tool and WEB configuration
■ Can call and engage in two-way intercom and network broadcasting with other SIP devices on the network
■ Anti riot metal casing
Technical specifications
■ Input voltage: DC 12V or POE power supply
■ Power consumption:
■ Network interface: 10/100Base TX adaptive network
Network protocols: Supports IP, ARP, ICMP, DUCP, UDP, DNS, IGMP, G.711A/U, G.722., RTP, TCP
■ Audio playback: Supports ADPCM decoding, 8K-32K sampling options available
Microphone frequency domain: 70-12.5KHz
■ Amplifier output: Mono 5W speaker output
■ Specification size: 162mmx100mmx28mm
■ Weight: 0.4KG
■ Firmware version: SV-6002TP Software version: V2.545C-TR

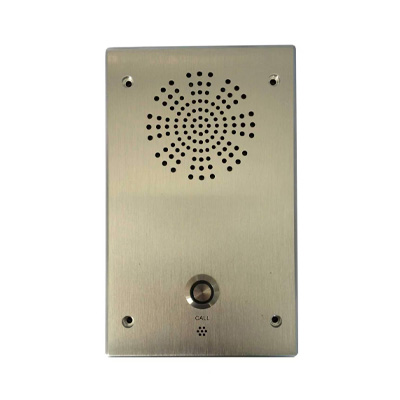

RUKOTA SV-6002TP SIP intercom terminal
The IP intercom terminal SV-6002TP is a device that uses ARM+DSP architecture to receive network audio streams, decode and play them in real-time; Equipped with microphone input and speaker output, serving as a playback terminal for network digital broadcasting. Mainly used for network broadcasting and intercom in places such as banks, departmental institutions, hotels, etc
